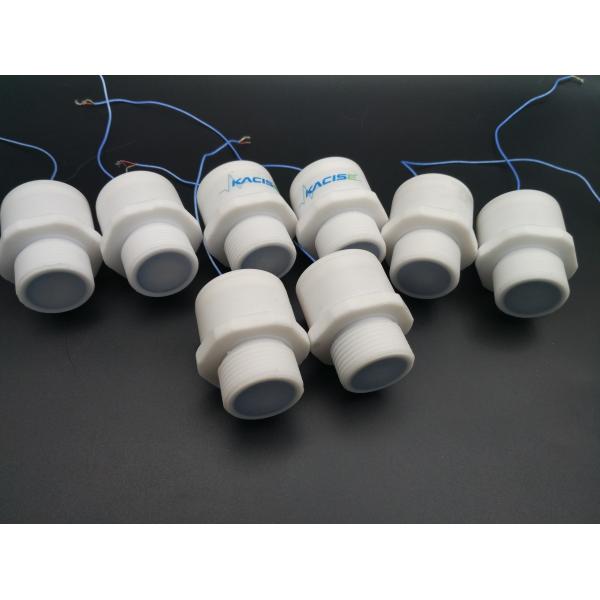

Food Grade PTFE Ultrasonic Fluid Level Meter 1"NPT Chemical Resistance

Name: Food Grade PTFE Ultrasonic Fluid Level Meter 1quotNPT Chemical Resistance
Brand: KACISE
Price: 1 USD

Quality Food Grade PTFE Ultrasonic Fluid Level Meter 1"NPT Chemical Resistance for sale

Brand Name : KACISE

Model Number : KUS550

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Material : PTFE

Thread : 1" NPT

IP grade : IP67

Contact Now

1"NPT Food Grade Chemical Resistance Whole Body PTFE Anti Corrosion Ultrasonic Level Sensor

Introduction

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC/PTFE housing, designed to meet IP67.

Features

. IP67 Designed for outdoor or indoor environments

. High sensitivity

. Free run operation can continually measure and output ranger information

. Sensor beam angle is 10 degrees (full angle)

. Chemical Resistance Whole Body PTFE

. Anti Corrosion

. Suitable for Sanitary and Hygienic application

Applications

. Tank level measurement

. Bin level measurement

. Proximity zone detection

. People detection

. Robot ranging sensor

. Autonomous navigation

. Multi-sensors navigation

. Distance measuring

. Food level detection

. Industrial automation

Parameters

General Parameters		Mechanical Properties
Detection Range	200mm~3000mm	Connection	5 pin cable
Transducer Frequency	70KHZ	Weight	100g
Repeatability Precision	≤1%	IP grade	IP67
Response Time	<50ms
Beam Angle	7°±2
Temp. Compensation	inside/outside/fix temp.
Electrical Parameters
Operating Voltage	14.5VDC~27VDC
Limit Working Voltage	13VDC~30VDC
Power Consumption	≤30mA
Circuit Protection	short-circuit protection, overload protection
Output	Digital Output	RS485
	Analogue Output	0~5V
	Switch Output	0V / 5V
Ambient Environment
Operating Ambient Temp.	0~70℃ (-40~85℃, -55~125℃, etc, customizable)
Storage Temperature	-55~125℃

Food Grade PTFE Ultrasonic Fluid Level Meter 1"NPT Chemical Resistance
