High Accuracy ±0.1%F.S General Pressure Transmitter with Wide Range -0.1MPa to 800MPa and Customizable Output

Product Categories
Xi'an Kacise Optronics Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High Accuracy ±0.1%F.S General Pressure Transmitter with Wide Range -0.1MPa to 800MPa and Customizable Output

  • 1
  • 2

Place of Origin : CHINA

Brand Name : KACISE

Model Number : GXPS series

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Supply Ability : 1000 Piece/Pieces per Week negotiable

Price : $55.00 - $260.00/pieces

Certification : CE

MOQ : 1PCS

Delivery Time : 5-8 work days

Power supplies : 10~30Vdc,8~30Vdc, 5V(ratio)

Type : general pressure transmitter

feature : general pressure transmitter

Pressure range : -0.1MPa~1kPa......800MPa(customizable)

Port : Shanghai or other

Accuracy : ±0.1%, ±0.25%, ±0.5%, ±1.0%F.S

Stability : Typical value: 0.1%F.S Max.: 0.2% F.S

Operating Temperature : -40°C~85°C

pressure interface : M20*1.5,G1/4,G1/2,R1/2,NPT1/2

presssure type : gauge pressure, seal gauge

Certificate : certificate of explosion-proof, CE

Contact Now

Latest high reliability and quality general pressure transmitter
Feature
  • Accuracy ±0.1%F.S ±0.25%F.S ±0.5%F.S ±1.0%F.S
  • Various measuring range and signal output
  • High stability and high quality
Introduction

The GXPS pressure transmitter has the characteristics of high reliability, high stability, high accuracy. It contains a wide kind of transmitters which can meet different demands and applications. Widely used in gas, liquid pressure detection, such as water,oil,mildly corrosive,corrosive gas and liquid pressure

Parameter
Spec. Value
Pressure range -0.1MPa~1kPa......800MPa (customizable)
Temperature range -40°C~85°C (customizable)
Load pressure 2 times nominal value pressure (2X)
Rupture pressure 4 times nominal value pressure (4X)
Accuracy ±0.1%, ±0.25%, ±0.5%, ±1.0%F.S (customizable)
Stability Typical value 0.25% F.S, Max. value: 0.4%F.S
Operating temperature -40°C~85°C (customizable)
Compensation temperature -10°C~70°C (customizable)
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti
Output signal 4~20mA, 0~5V,0~10 V, 1~5V,1~10V, RS232, RS485,USB and so on (customizable)
Power supply 5VDC,24VDV,6~24VDC,12~30VDC, 9VDC battery, 3.6VDC battery and so on (customizable)
Insulation >100M &@50V
Electrical connection

Waterproof fixed cable, Hirschmann, Air plug and so on (customizable)

protection grade : IP65, IP67, IP68
Pressure port M20×1.5, G1/4, G1/2, R1/2, NPT1/2 (customizable)
Pressure type Gage, Seal, Absolute Response time: 10ms
Certificate Intrinsically safe , CE, explosion suppression
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2

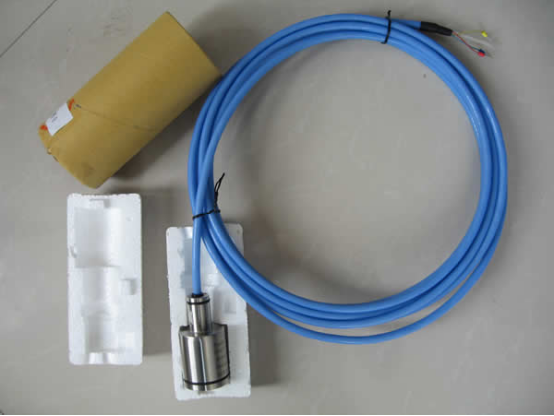

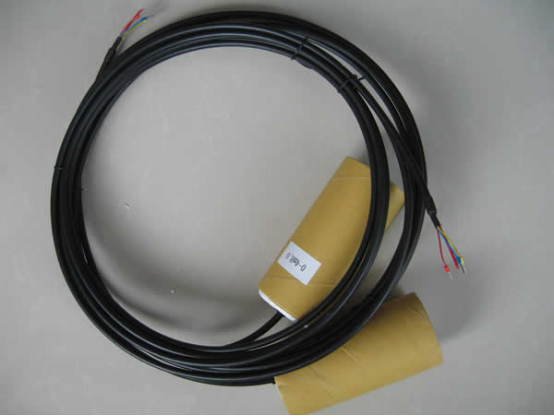

Package

High Accuracy ±0.1%F.S General Pressure Transmitter with Wide Range -0.1MPa to 800MPa and Customizable OutputHigh Accuracy ±0.1%F.S General Pressure Transmitter with Wide Range -0.1MPa to 800MPa and Customizable OutputHigh Accuracy ±0.1%F.S General Pressure Transmitter with Wide Range -0.1MPa to 800MPa and Customizable Output

High Accuracy ±0.1%F.S General Pressure Transmitter with Wide Range -0.1MPa to 800MPa and Customizable OutputHigh Accuracy ±0.1%F.S General Pressure Transmitter with Wide Range -0.1MPa to 800MPa and Customizable Output

In order to choose the suitable products for you, please send us below information with the feedback.

  1. pressure range
  2. accuracy
  3. output signal
  4. power supply voltage
  5. pressure port
  6. elec. connection
  7. medium
  8. temperature range

Xian Guangxing Mechano-Electronic Co., Ltd.

The quality principle: Quality is the best sales

Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow

Shipping:

1.All parts will be shipped out within 1 - 3 working days after comfirm the payment

2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex

3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service.

4.Any import fees or charges are af ed by the buyers

Service :

1.Provide you one-stop service of electronic components

2. Competitive price advantage help to save your purchase cost and bring in you more profits

3. Having advanced e-commerce capabilities

4. Quick and accurate delivery and flexible logistics support

5. Personalized service, based on your programs and ideas to serve you

High Accuracy ±0.1%F.S General Pressure Transmitter with Wide Range -0.1MPa to 800MPa and Customizable Output
